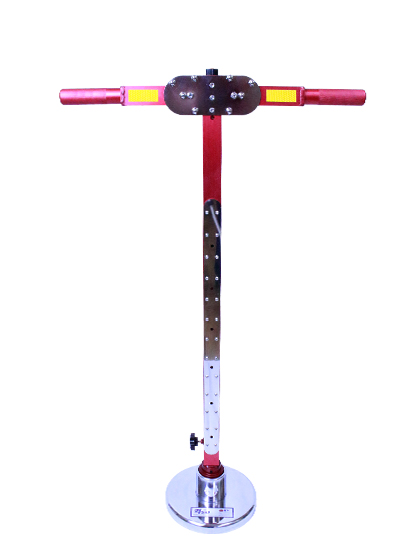

Versafold Valve Key is an innovative product designed and built by an entirely new method to improve the inconvenience of existing valve keys and to provide a robust structure and new features.
*Please turn on the sound and listen.
Reliable Durability

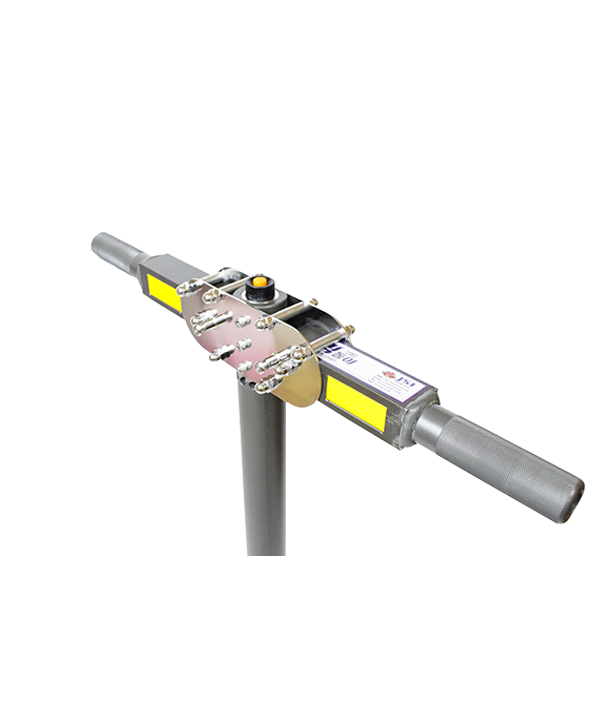

It is made by cutting high-strength aluminum alloys and stainless steel altogether,
to ensure strong durability and corrosion resistance. Further, it is made to withstand
strong torque during operation.

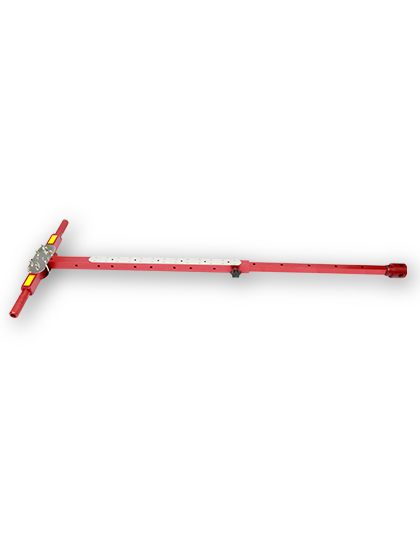

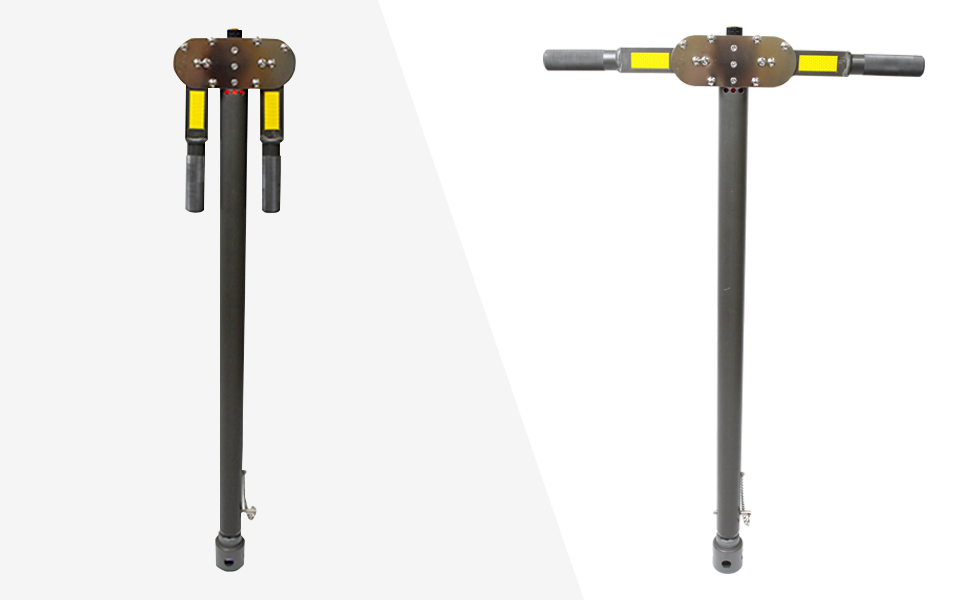

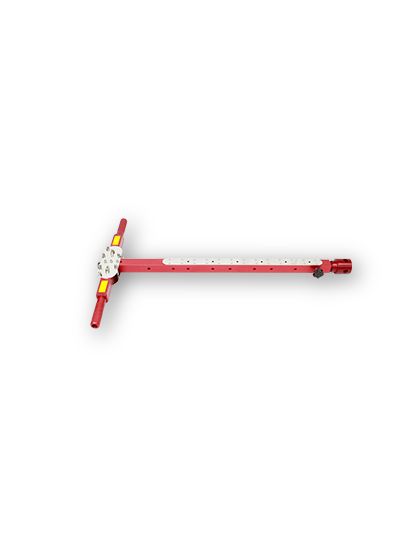

The foldable structure makes moving and loading convenient.
Not only can the handle be folded thanks to a foldable structure, but the entire length can be adjusted, making it convenient to load on small cars.
- Handle width : 620mm(Max) → 200mm(Min)
- Overall length : 1040mm(Min) → 1640mm(Max)
Having only one Versafold Valve Key is enough.

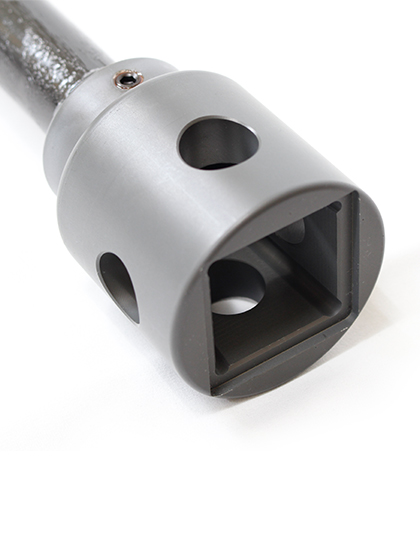

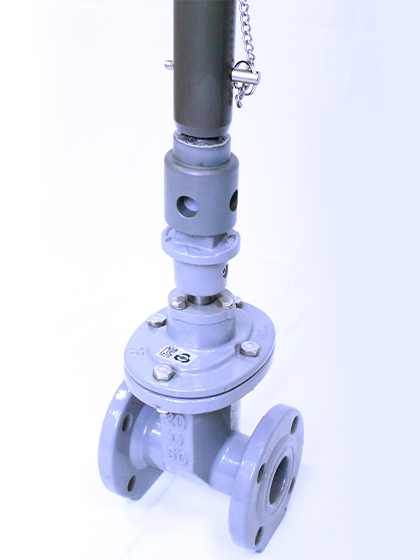

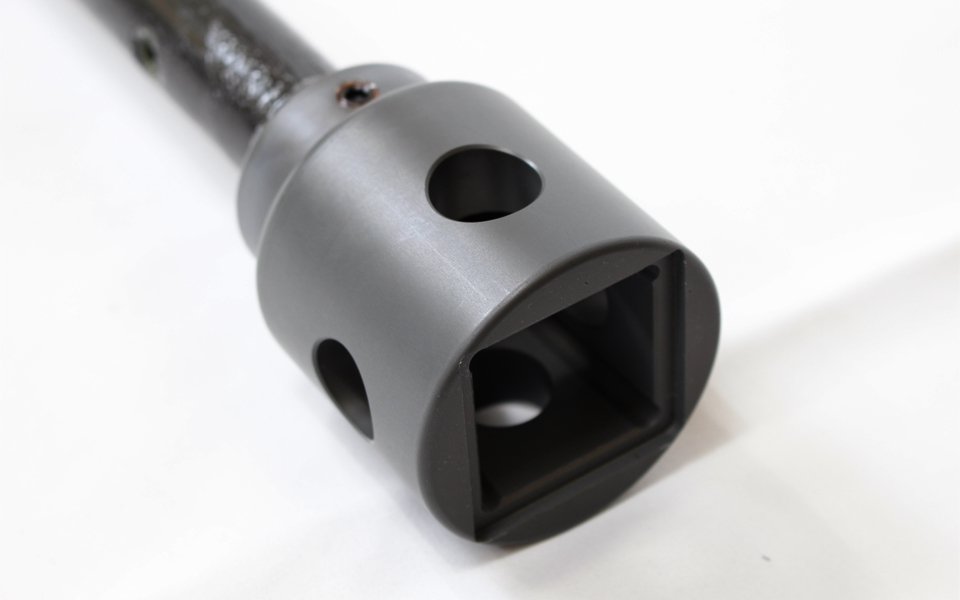

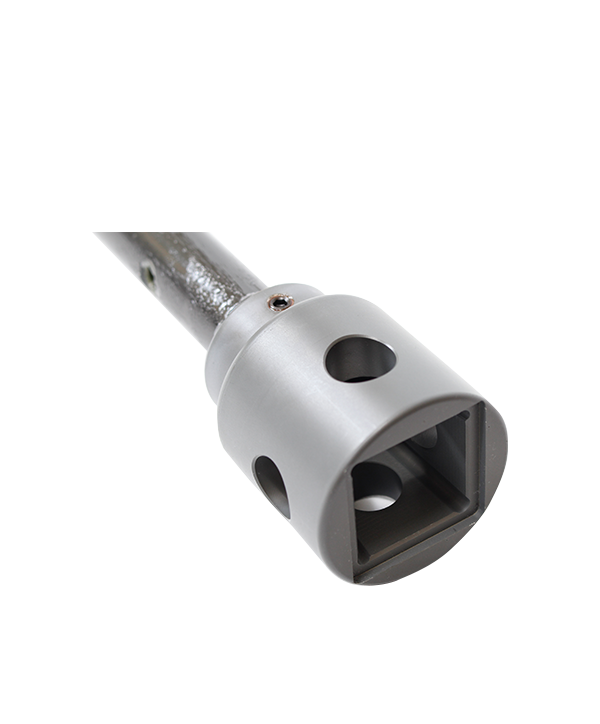

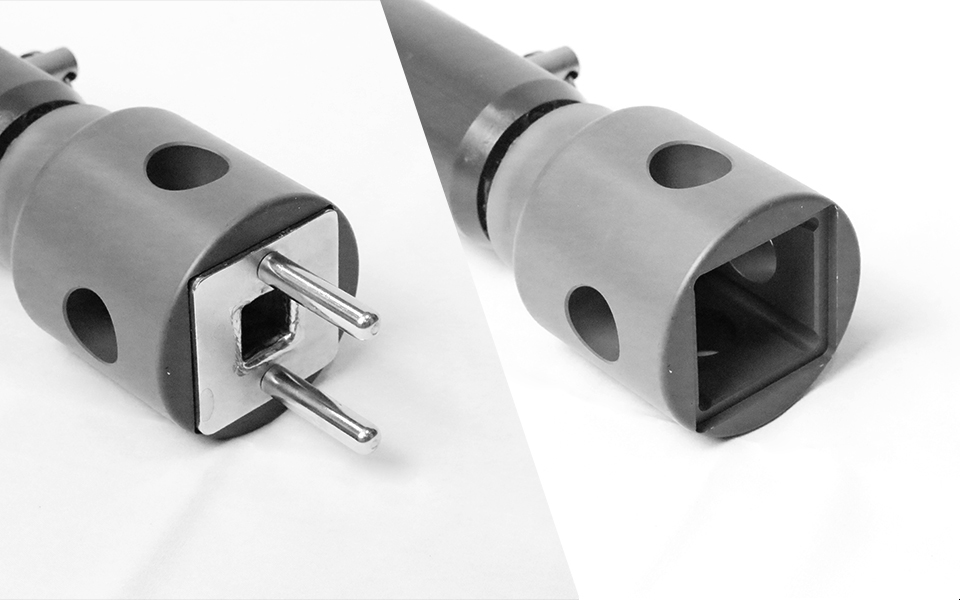

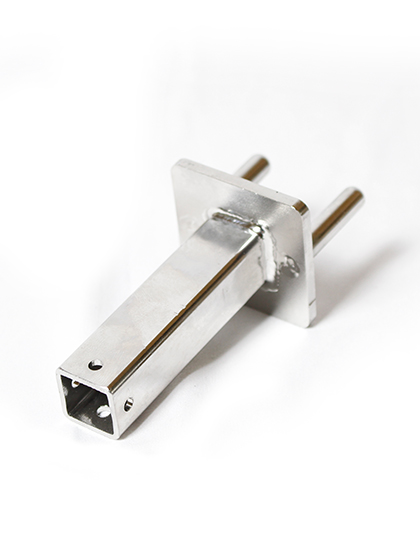

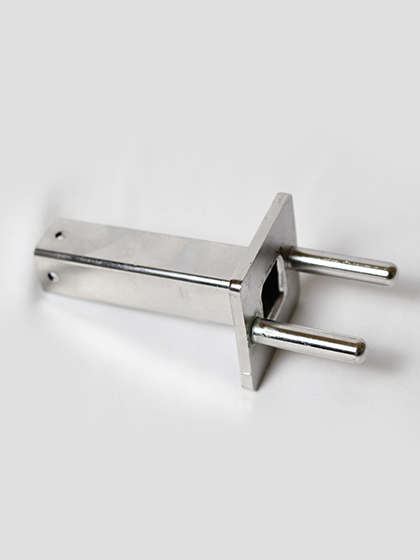

The adaptor can be mounted on the head joint of the valve, allowing the operation
of various valves such as the exponential Gate Valve, Curb Box valve,
and the fire valve with a single key.

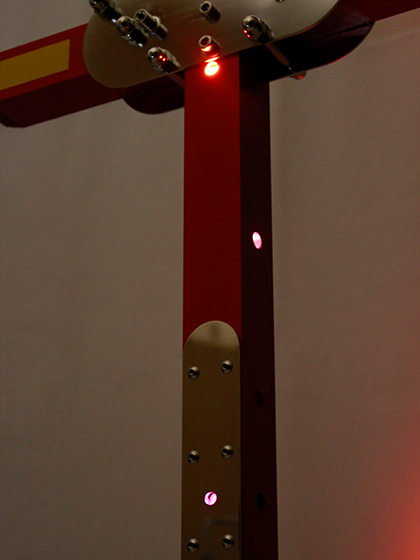

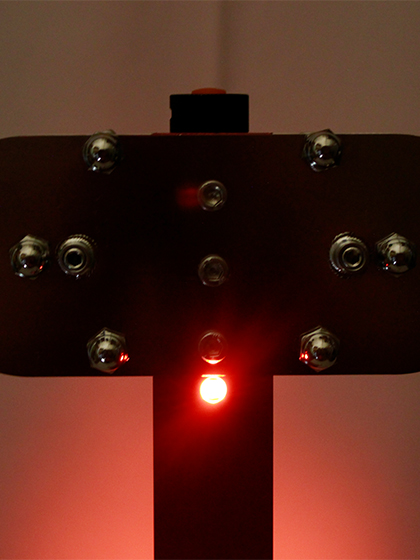

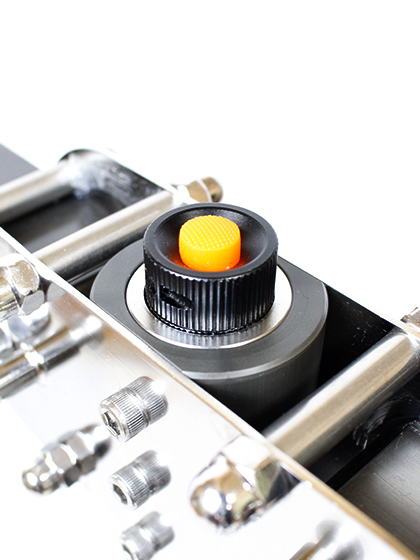

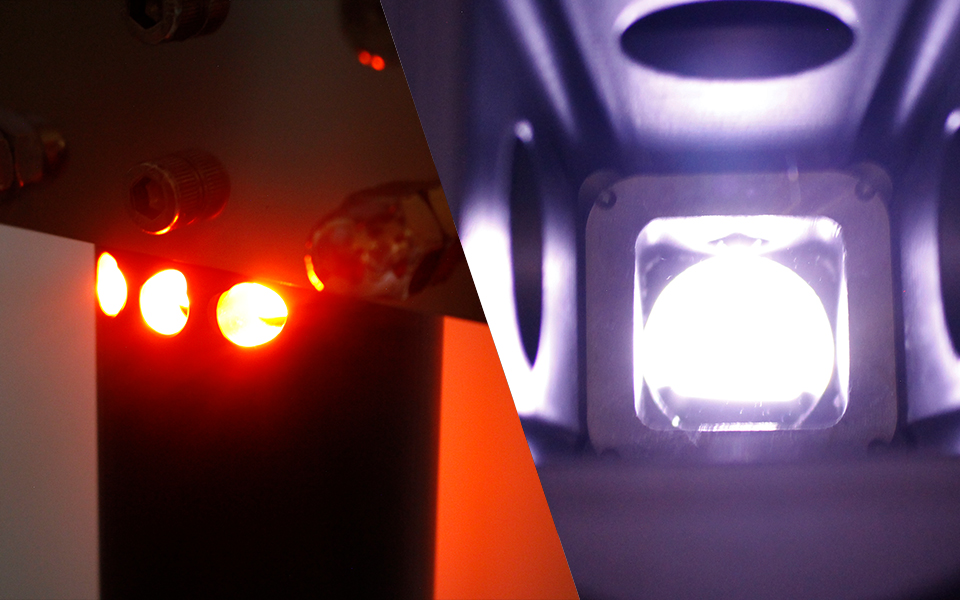

The installation of safety light and search light allows you to work safely and conveniently even at night.

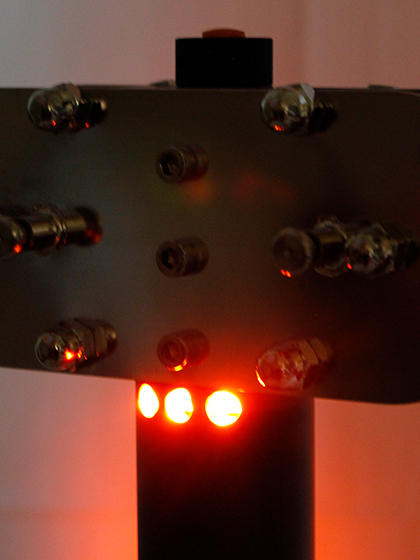

The safety light prevents collisions when working on the road at night,

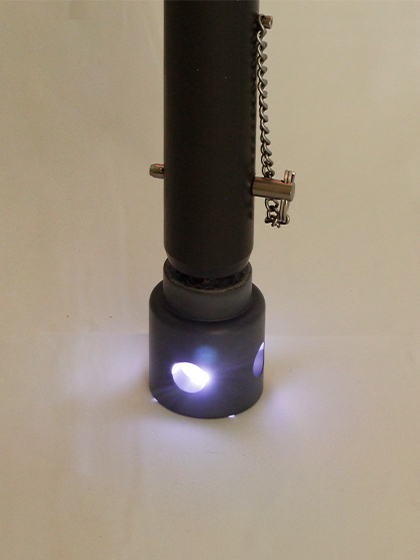

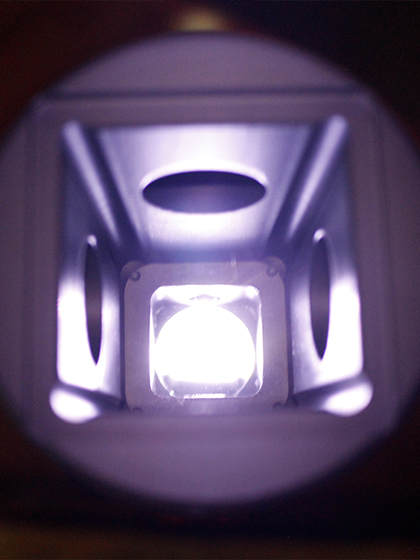

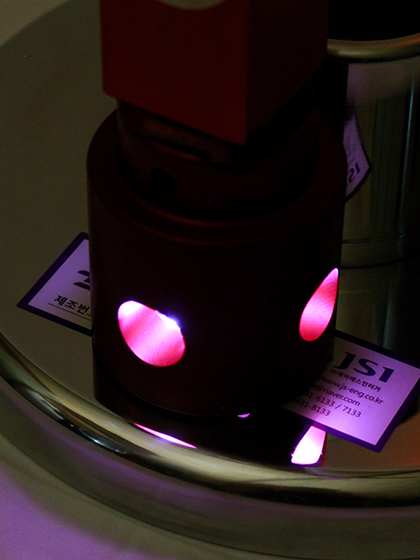

and search lamp is installed on the valve head connector so that
valves that are buried deep in the dark ground can be found and fitted easily.
Reliable performance and quality recognized
Versafold Valve Key is handmade one by one through the in-house technology of JS Integer,
which has accumulated more than 20 years of expertise in the field
of machine/apparatus manufacturing.
Furthermore, Versafold Valve Key obtained a domestic patent for the originality
of product structure, and won the silver prize at the Seoul International Invention
Fair in recognition of the quality and superior technology of the product.
- Korea Patent: 10-1806206 (K-Water)
Product Types

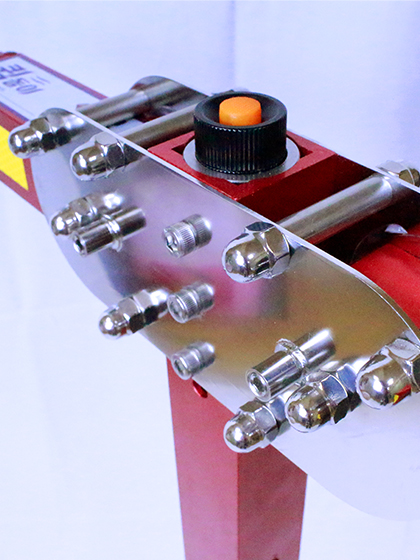

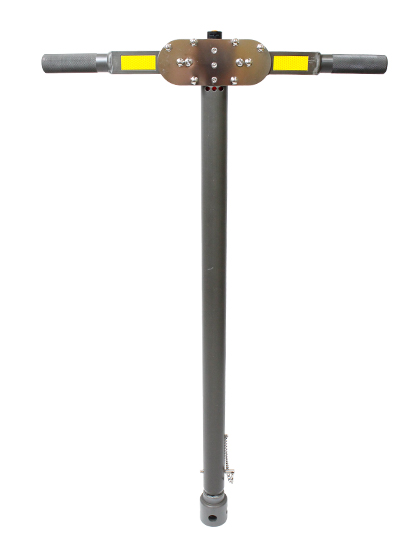

A- TYPE
Lightweight type
The lightweight design makes it
light and easy to carry around.
| Length | Minimum : 940 / Maximum : 1,550 (mm) |
|---|---|
| Width | Folding : 200 / Spread : 620 (mm) |
| Weight | 4.4 kg |
| Allowable Torque | 23 kgf/m |

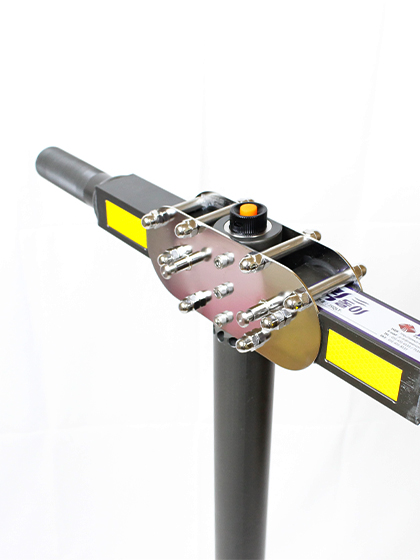

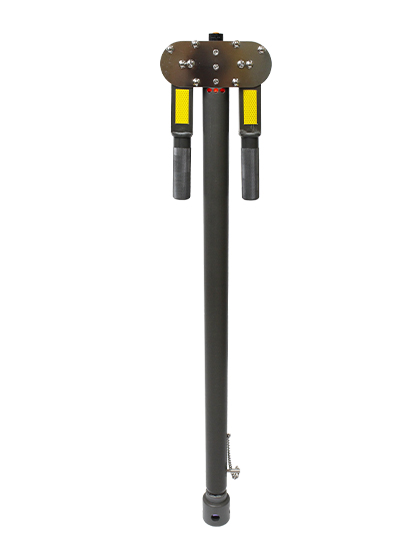

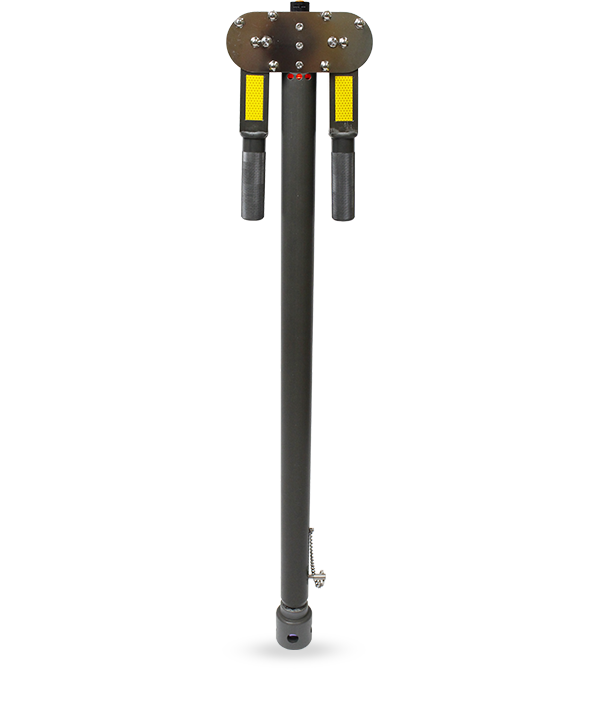

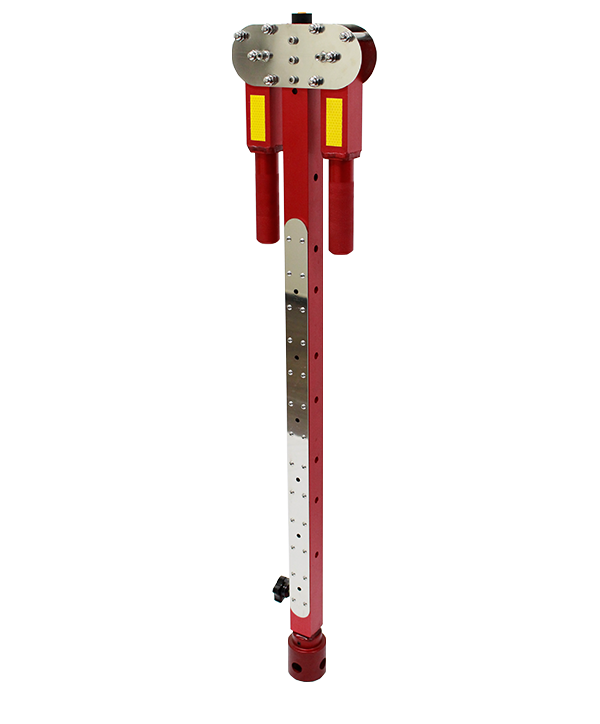

C- TYPE / R-TYPE
Reinforced heavy weight type
The robust design can withstand strong torque.
It is 10cm longer than the A-type and
can be adjusted in 4 steps.
| Length | Minimum : 1,040 / Maximum : 1,640 (mm) |
|---|---|
| Width | Folding : 200 / Spread : 620 (mm) |
| Weight | 6.7 kg |
| Allow Torque | 24 kgf/m |

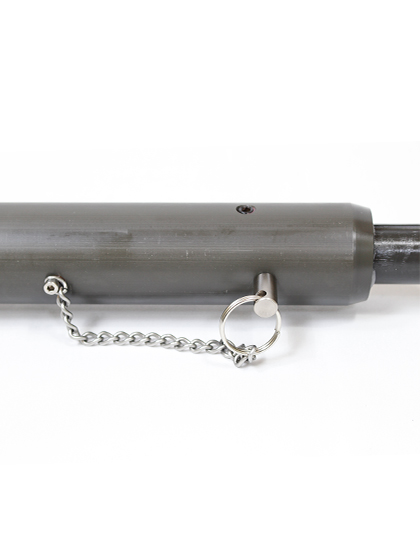

※ Types R and C are divided by different hold types of the inner extension shaft.
(Type R : Screw-fastened type / Type C : Pin-fixed type)
